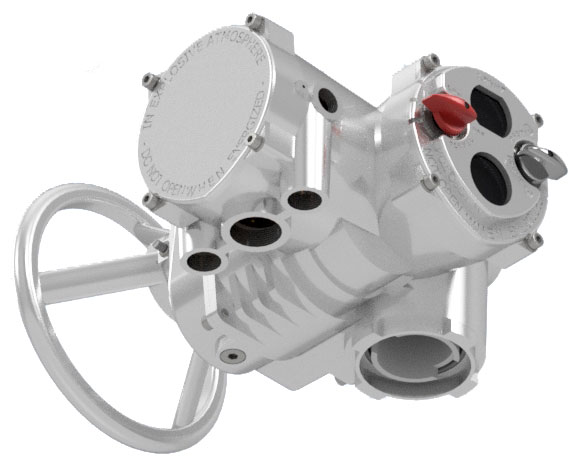

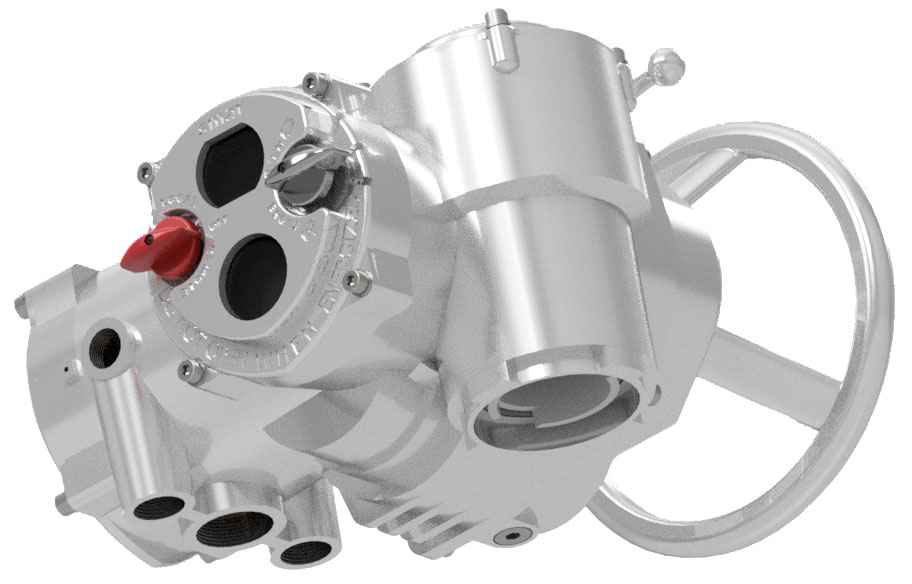

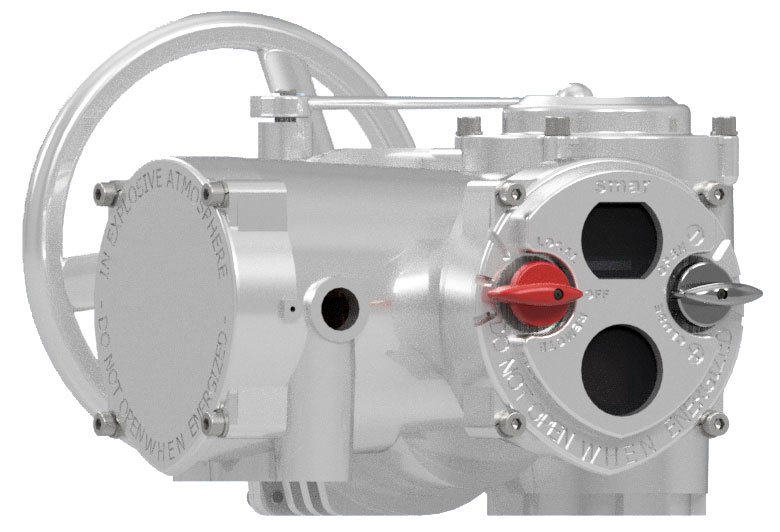

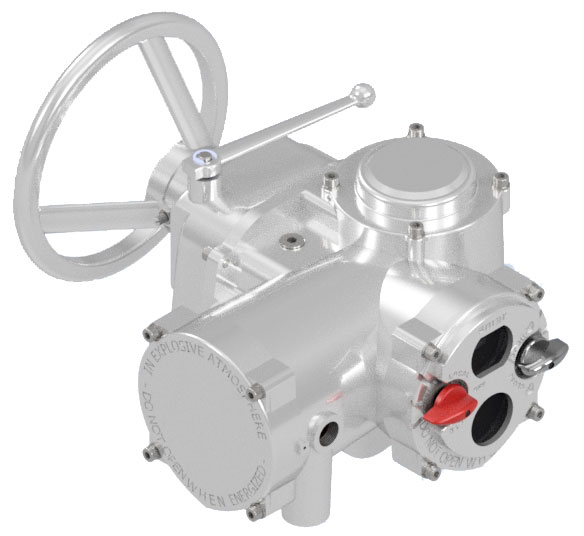

AC500 Series

The AC500 compact actuators are an intelligent and robust design.

The configurable display of the AC500 is the interface with actuator´s software for on/off and continuous modulating duty.

FEATURES

• Non-intrusive local device configuration;
• Local user interface with wireless Wi-Fi capability for configuration and monitoring of key parameters;
• Quarter-turn valve with a maximum torque of 500 Nm for F10 flanges and 2000 Nm for F14 flanges (ISO 5211);
• Multi-turn valve with a maximum thrust of 40 kN for F10 flanges and 100 kN for F14 flanges (ISO 5210);
• Linear force up to 200 KN (ISO 5210);
• Ingress protection IP66 and IP68;
• HART Protocol;
• Explosion proof enclosure;
• Display Backlit LCD;
• Manual operation by handwheel and declutch lever. Operation with the electric motor is mechanically disengaged;
• Oil bath lubrication maximizes mechanical component life.
